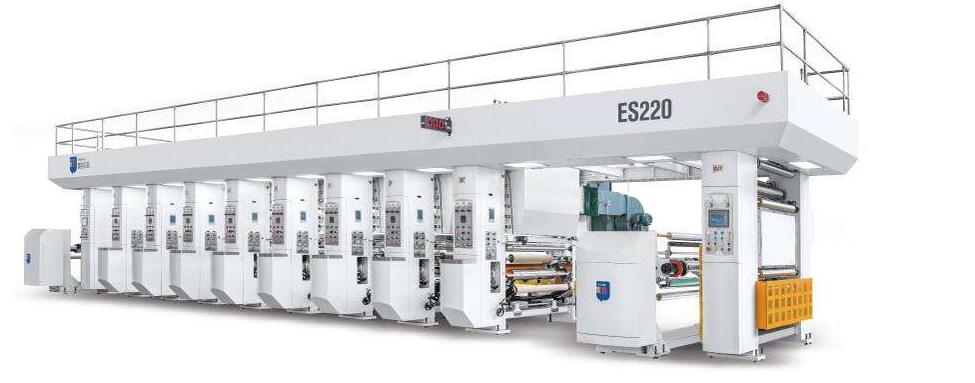

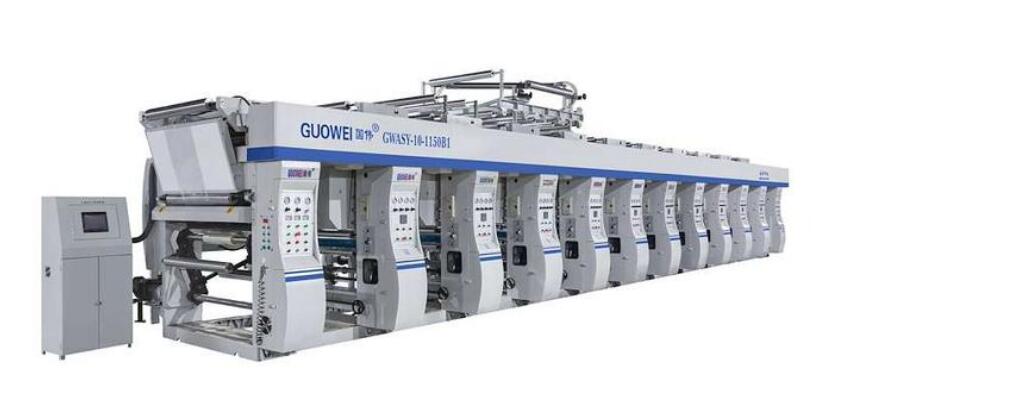

Rotogravure Press:

This machine is used for BOPP, PET, PVC, PE roll paper and so on. It can print multi-color continuously. Printing color can be increased or decreased according to customer’s requirements, operation is simple, stable, transmission part adopts gear structure, fully sealed lubrication, tension system adopts electromagnetic powder clutch controller, all parts of Torque Motor adopt rewinding, double drying channel design, fast drying, fast printing, rewinding, rewinding are double working mechanism, make material continuous.

Widely used in printing BOPP, OPP, CPP, PET, PE, PVC, cellophane, paper, composite film and other films of the same nature.

Main Tecjnical Parameters:

Technical data

Recovered specifications

Color Code	8
Maximum print width (mm)	800
Maximum print length (mm)	1000
Maximum Mechanical Speed (M / Min)	110
Print Speed (M / min)	70
Plate diameter (mm)	110-320
Rewinding and rewinding diameter (mm)	600
Manual alignment error (mm)	≤0.15
Drying method	Electric Heating
Total Power (kw)	88
Installation size (length x w ^ x h)(mm)	12800x2500x2500
Weight (kg)	11,000
