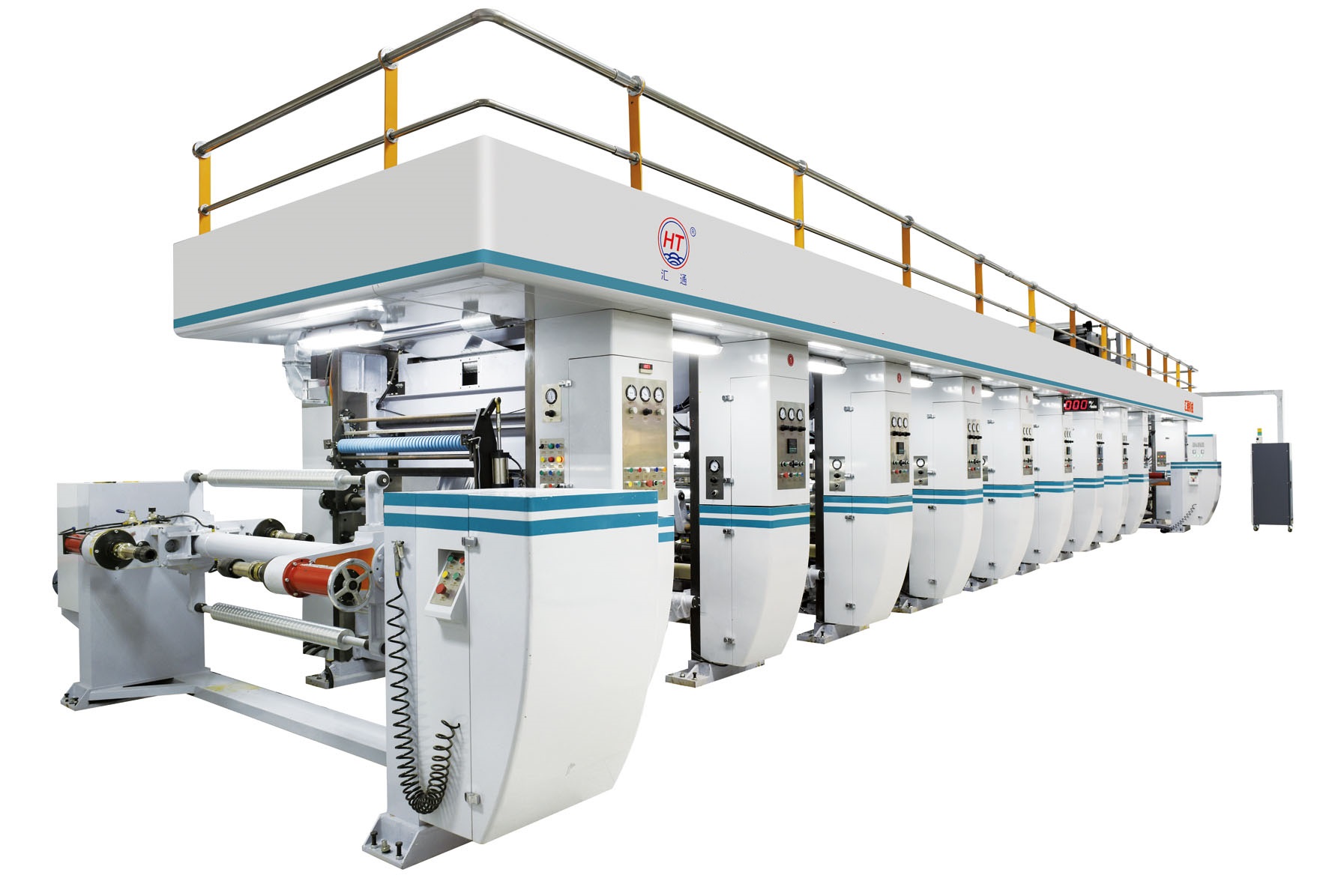

Gravure Printing Machine

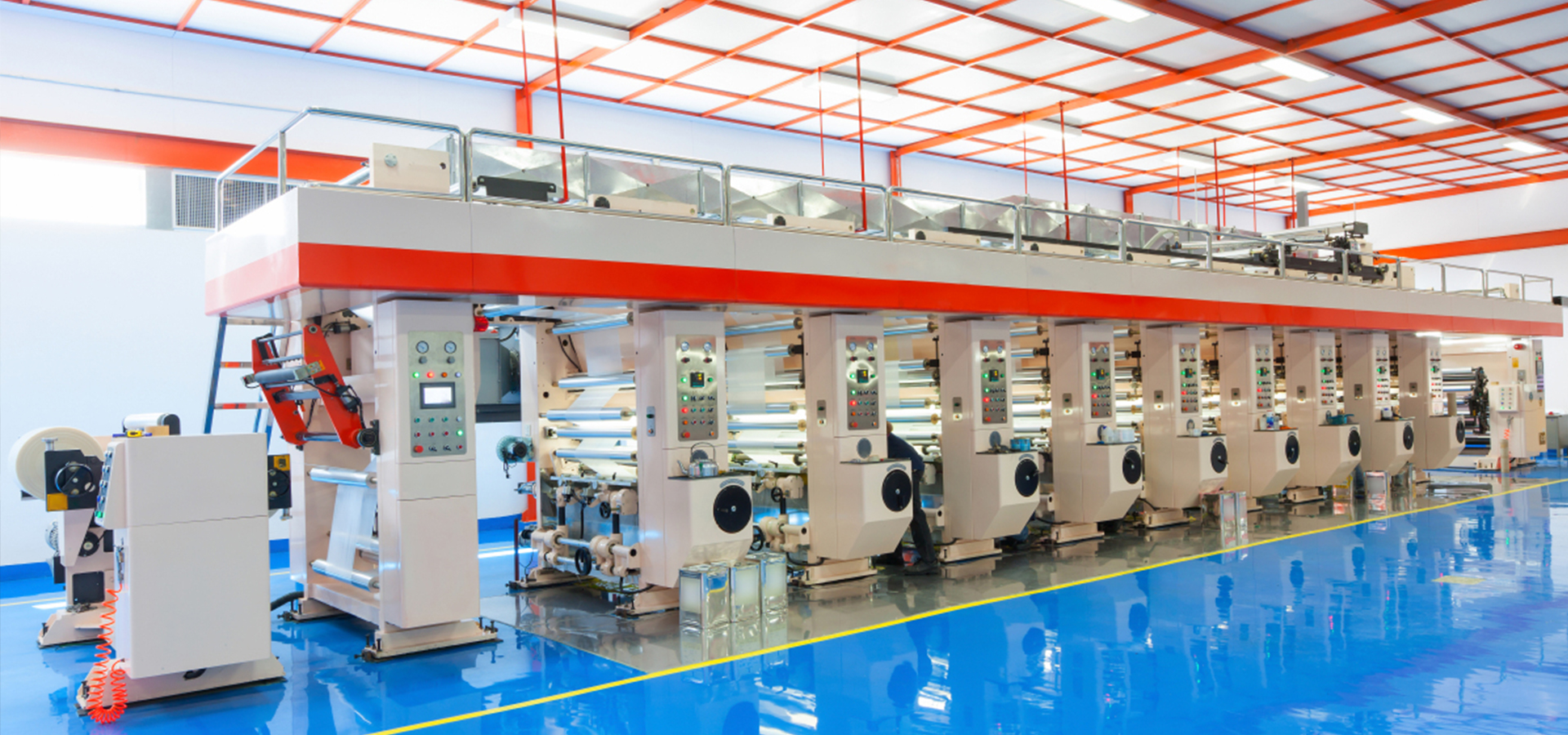

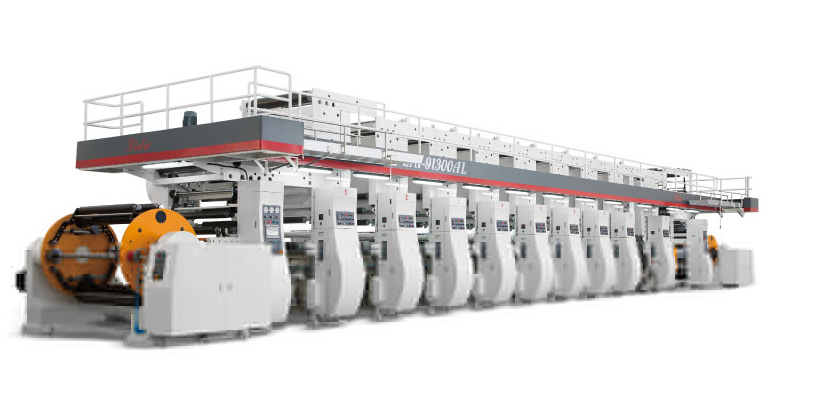

Gravure Printing Machine view 2Gravure Printing Machine view 3Gravure Printing Machine view 4
Printing Machines

Gravure Printing Machine

Gravure printing press:

  • Application review
  • Export configuration
  • Technical support
Request Configuration
Machine overview

Product information

Gravure printing press:

This machine is suitable for multi-color continuous printing of roll-in cylindrical materials with excellent printing performance

such as cellophane, BOPP, PET, PVC, PE, nylon, aluminum foil and paper. It is widely used in various high-grade prints.

The main parameters:

Technical data

Recovered specifications

Machine directionFrom left to right (unwinding to winding)
Printing color8 colors
Maximum material width1100mm
Maximum printing width1100mm
Guide roller effective length1200mm
Maximum mechanical speed250m/min
The highest printing speed220m / min (plate roll diameter ≥Φ170mm) speed when printing paper ≤ 150m / min
Unwinding diameterΦ1000mm
Winding diameterΦ1000mm
Paper core specificationsφ92mm
Minimum effective roll change diameterΦ200mm
Rewinding and unwinding mechanismexternal bidirectional rotary double-axis duplex station
Wall panel thickness75mm
Wall panel width500mm
Color group spacing1600mm
Plate diameterΦ120mm~Φ300mm
Plate width700~1200mm

Final specifications are confirmed against your material, bag dimensions, and production target.
