Automatic Square Bottom Paper Bag Machine
Paper Bag Machines

Automatic Square Bottom Paper Bag Machine

Performance and use:

  • Application review
  • Export configuration
  • Technical support
Request Configuration
Machine overview

Product information

Performance and use:

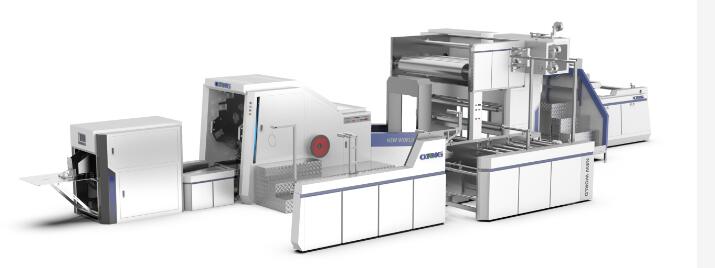

This machine is built to make shopping bags or food bags with paper rolls, paper can be pre-printed. Machine is equipped with a photocell device. This machine features a continuous function of automatic paper feeding, gluing, creasing, bottom-sticking and bag forming at a stroke. This is ideal equipment for making paper bag for grocery, loading foods, sugar, flour and so on.

Technical data

Recovered specifications

Paper Roll Width (mm)280-640
Maximum Paper Roll Width (mm)1000
Paper Gram Weight (g/㎡)60-120
Bag tube length (mm)170-370
Bag Width (mm)80-200
Bag Bottom Width (mm)50-110
Speed (bag/min.)80-190
Total Power (kw)10
Machine Weight (Ton)6.5
Machine Dimension (L*W*H)7000*1800*1900mm

Final specifications are confirmed against your material, bag dimensions, and production target.

Project inquiry

Ask about Automatic Square Bottom Paper Bag Machine

Share your bag size, material, and target output. We will reply with a suitable machine direction.

Your message opens in WhatsApp or your email app so you can review it before sending. We normally reply with the technical questions needed to confirm a workable machine configuration.
